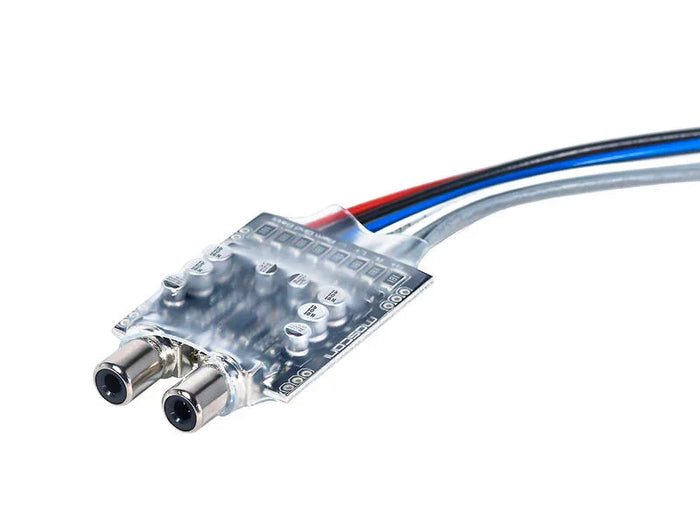

Mosconi HLA.SLIM adattatore High-Low per 2 canali

Mosconi HLA.SLIM adattatore High-Low per 2 canali

Caratteristiche tecniche:
Stand-By Current Consumption < 0.8mA
Operative Current Consumption < 15mA
Polarity Inversion Protection: Yes
Max allowed current on Remote Out 100 mA (normal operation)
Min allowed load on Remote Out 120 Ohm (normal operation)
Remote Out Voltage > 12V @ Irem-out < 100mA
Remote Out Short Circuit Protection: Yes (to ground)
Max Short Circuit duration on Remote Out < 10 second (*)
Total Harmonic Distortion < 0.01%
Slew Rate 10V/µs
S/N Ratio > 100dB
Channel Separation > 60dB
Common Mode Noise Rejection > 60dB
Stepdown conversion ratio 4:1 V/V
High Level Input ballast impedance 45 Ohm / 2W each channel
Max continuous (sinewave) Power handling @ 4Ohm 25Wrms x CH
Max allowed Head-Unit nominal power handling 50W x CH (**)
Max Output Signal @ THD < 0.1% 3.2 Vrms
Min Output Load Impedance 2 KOhm
Marca: Mosconi
Codice: HLA.SLIM
